Searching for Web Warehouse Parts

You search for parts by vehicle. If you open Web Warehouse from a ticket, the vehicle in the ticket is selected for you automatically.

The Web Warehouse logo in the Smart eCat toolbar.

If not, you need to select the vehicle in the Web Warehouse database.

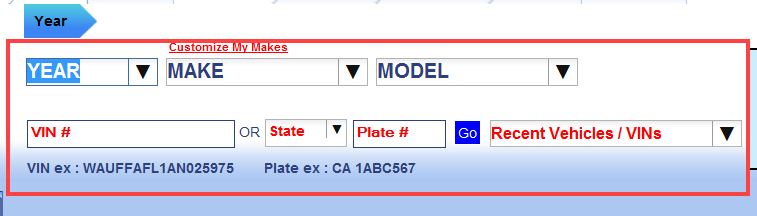

The vehicle selection options circled on the IMC catalog window.

Searching for Parts

Complete these steps:

  1. Open a ticket.
  2. .Click the Web Warehouse logo The web warehouse logo in the Quick Launch. in the Quick Launch.
  3. Smart eCat opens the punchout for Web Warehouse.
    • R.O. Writer automatically logs you in and selects the vehicle in the ticket.
    • If Web Warehouse doesn’t find the vehicle, enter the search criteria to select the vehicle.
    • If Web Warehouse selects the wrong vehicle, click Reselect Vehicle button at the top of the window to select the correct vehicle.

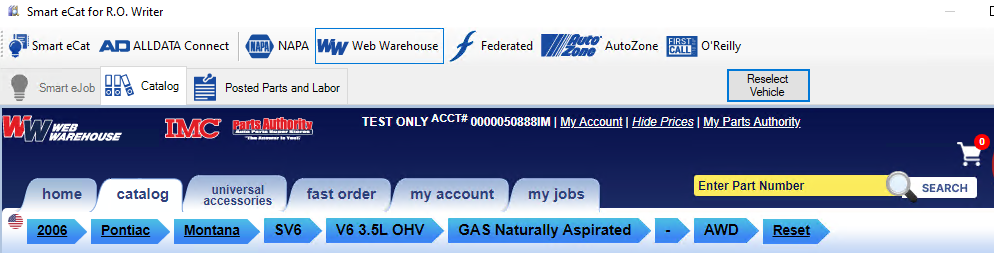

    The Web Warehouse punchout.

  4. You can search for parts by

Part Number

Type in a part number and click Search Now.

The part number search field circled on the IMC catalog window.

Keywords

Enter a description into the Keywords field and click Search.

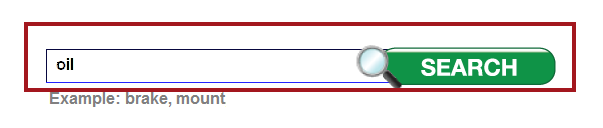

The keyword search field circled.

If the search term is too broad, a window will pop up to help you refine your search terms.

Categories

Click a category in the Categories tab in the left column. The search is launched and the results appear on the right.

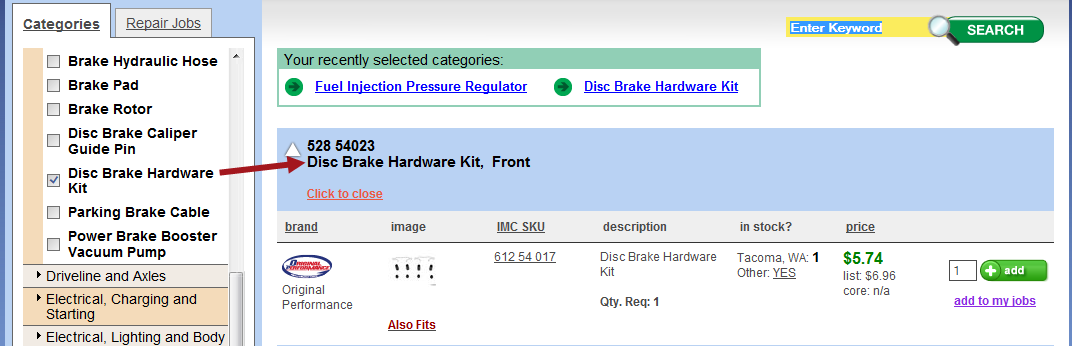

Search categories on the IMC window.

NOTE: For domestic vehicles, only the categories with parts for the vehicle are included in the Categories tab.
