Configuring ALLDATA

There are three steps to configuring ALLDATA Connect in R.O. Writer:

Check Your License

Add ALLDATA Connect to the Quick Launch

Check Your License

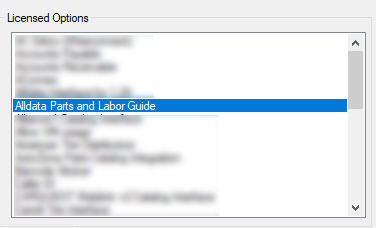

To verify that you are licensed to use ALLDATA Connect, click the Help menu > About > Display License Details button. You should see "Alldata Parts and Labor Guide" in the Licensed Options section.

Alldata in the Licensed Options section.

If this feature is not included in the Licensed Options section, you may need to refresh your license.

If you would like to add this feature, please contact the R.O. Writer Sales team to update your license.

Add ALLDATA Connect to the Quick Launch

You need to make ALLDATA Connect available in the Quick Launch and Smart eCat.

Complete these steps:

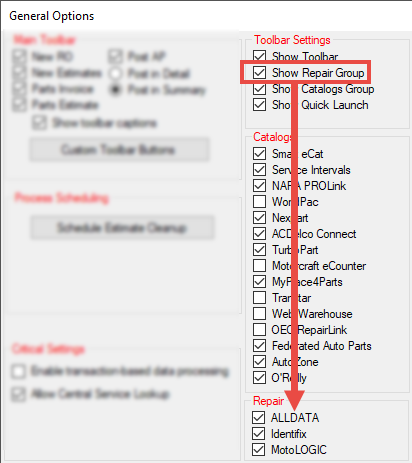

  1. Open the Configuration module, click the File menu > General Options.
  2. In the Toolbar Settings section, select Show Repair Group.
  3. In the Repair section, select ALLDATA.

    Alldata connect selected on the General Options window.
