The WORLDPAC Parts Interface allows R.O. Writer and the WORLDPAC speedDIAL program to integrate smoothly, enabling part quotes and orders to be sent between the two systems.
Watch the video below to see an overview of this functionality.
WORLDPAC Configuration
To configure Vehicle Integration, Pricing Adjustments, and Order Details, open the Configuration module and select File > DIAL Configuration.

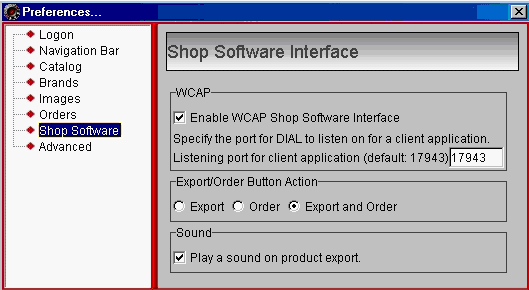

In the WORLDPAC speedDIAL program, select View > Preferences.
Select the Shop Software option and ensure that the Enable WCAP Shop Software Interface box is checked. This allows the integration between speedDIAL and R.O. Writer.
When they are integrated, the R.O. Writer text is visible in the bottom right of the WORLDPAC screen and the button is green.
R.O. Writer has to make a "handshake" with the speedDIAL program before the two programs can talk to each other. Start the speedDIAL program and log into the WORLDPAC server, then open R.O. Writer and click the WORLDPAC button and wait a few moments. In a matter of seconds the WORLDPAC interface displays with an R.O. Writer button in the bottom right side of the speedDIAL window.
NOTE: The recommended method is to always have the WORLDPAC program running and logged in.
| Button | Click to… |
|---|---|
|
|
Export the part information to the R.O. Writer ticket and order next time WORLDPAC is accessed. To order, you can drag the part from the top window to the order window. |
|
|
See the Order button. |
|
|
Export the information to the R.O. Writer ticket and add the part to a new order at the same time. |
This section contains the following topics:
