Entering Tire Information on Parts

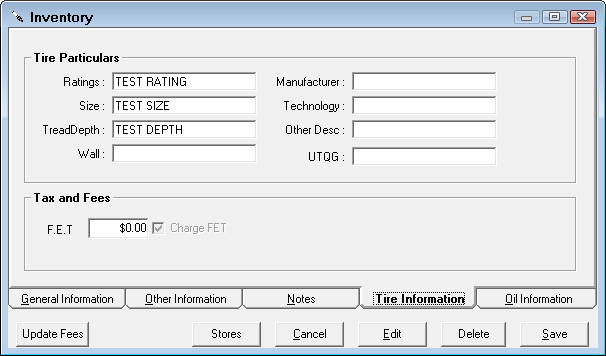

Tire information can be entered and stored on the Tire Information tab of Inventory records of parts in the tire group.
NOTE: This tab is active only if the tire is in the tire group. If not, this tab is blank.
Once entered, this information then appears

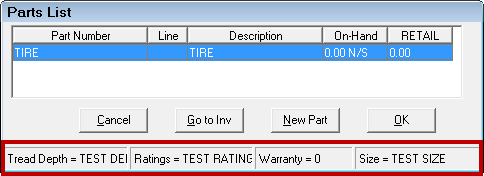

- At the bottom of the Parts List in part searches.

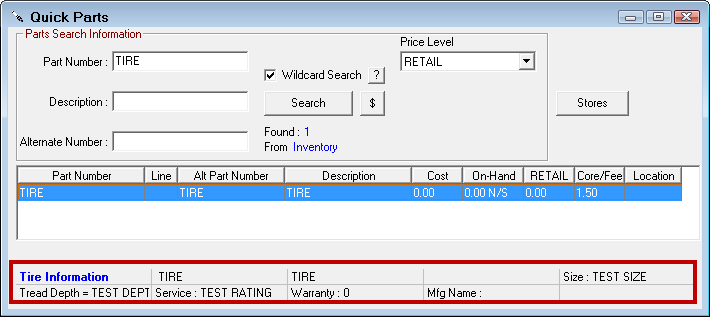

- Search results in Quick Parts.

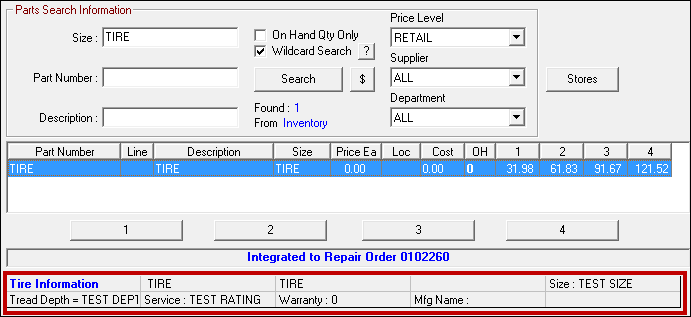

- Search results in Tire Quote.
- When the Tire Info button is clicked on Editing Part Window.

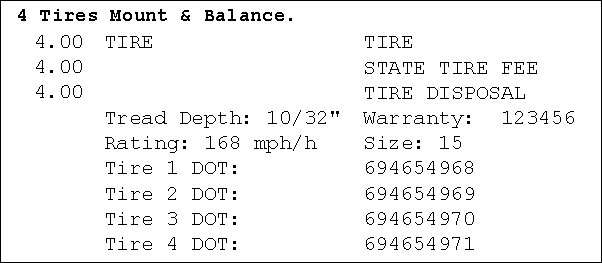

- Prints on estimates, work orders, and repair orders whatever data is entered.
If the specification fields are left blank, then nothing prints.
Adding Tire Information
Enter additional tire information on this tab as desired. This information is not required to save the part but can help you when working with tires in other parts of R.O. Writer like Tire Quote.
Tire Information Fields
| Field | Description |
|---|---|
|
Ratings |
Defines the speed rating and load rating of a tire. |
|
Size |
Defines tire size. |
|
Tread Depth |
Indicates tread depth of tire. This information is necessary for warranty redemption. |
|
Wall |
Represents tire wall type. |
|
Manufacturer |
Name of the tire manufacturer. |
|
Technology |
Technology the tire was built with. |
|
Other Desc |
Additional information; this can be any information you feel is relevant to the tire. |
|
UTQG |
Uniform Tire Quality Grading system represents tread wear rate, traction performance and temperature resistance. |
NOTE: Though not on this tab, Warranty information from the Other Information tab is also considered Tire Information.
Where Tire Information Appears
Tire information appears throughout R.O. Writer.
| Tire Info | Parts List | Tire Quote | Quick Parts | Edit Parts Window (Tire Info Button) |
Prints on Tickets |
|---|---|---|---|---|---|
|
Warranty |
ü |
ü |
ü |
ü |
ü |
|
Ratings |
ü |
ü |
ü |
ü |
ü |
|
Size |
ü |
ü |
ü |
ü |
ü |
|
Tread Depth |
ü |
ü |
ü |
ü |
ü |
|
Manufacturer |
ü |
ü |
|||
|
Wall |
|||||
|
Technology |
|||||
|
Other Desc |
|||||
|
UTQG |
FET Charge
The F.E.T. field is active only if the Charge FET option is checked in the tire group. If this tire requires F.E.T. tax, enter the amount here.
